Push Lock Fittings
RELAB 700 series push lock fittings are a high-pressure quick connection coupling that can be easily installed without any tool assistance. Compared other similar products, our 700 series fittings offer better sealing, longer life and resistance to higher pressures, thanks to a unique product design and high processing accuracy. And this fitting is equipped with an 8-talon lock ring, so that it has a very good performance: under a pressure of 70 bar/1000PSI, the tube is tightly fastened by the lock ring, and there is no shaking, so that this product has stronger tightness and applicability, even if the tolerance of pipe outer diameter is 0.2mm, this fitting still has good sealing.
One-nozzle Connector
Because of their unique internal structure and lock ring design, in the installation process, they do not need special hoisting, only need to fix the pipeline horizontally, which can save users 50% installation time.
- Model:
- 700
- Construction:
- Push lock, double seals and 1-nozzle hole
- Material:
- Ni-brass, 304SS or 316SS
- Pipe size:
- OD1/4, 3/8, 1/2, 10mm, 12mm
- Pressure:
- 10 to 70 bar/1000psi
- Nozzle thread:
- 10/24, 12/24, W3/16, M5
Double-nozzle Connector
There are two nozzle threaded holes for the 701 double-jet fitting. The two threaded holes are angled 180° on both sides of the fitting, and the user can also choose 120° or 150° on request.
- Model:
- 701
- Construction:
- Push lock, double seals and 2-nozzle hole
- Material:
- Ni-brass, 304SS or 316SS
- Pipe size:
- OD1/4, 3/8, 1/2, 10mm or 12mm
- Pressure:
- 10 to 70 bar/1000psi
- Nozzle thread:
- 10/24, 12/24, W3/16 or M5
Push Lock Union
Model 702 is a linear pipe coupling without thread hole. It is to connect two tubes of the same or different sizes to assist in extending the tube longer. The push lock union will become an end connector when you insert a plug into one end of it.
- Model:
- 702
- Construction:
- Push lock and double-seal
- Material:
- Ni-brass, 304SS or 316SS
- Pipe size:
- OD1/4, 3/8, 1/2, 10mm or 12mm
- Pressure:
- 10 to 70 bar/1000psi
Push Lock Tee

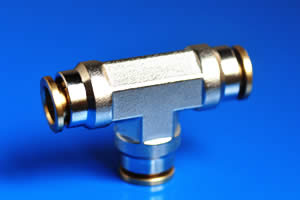

The one-piece body is selected from food-grade 304 stainless steel cast by mold, which is the best choice for the food processing industry. Compared with those split and bonded products, our push lock tee is thicker and cost-free in material.
- Model:
- 703
- Construction:
- push lock ring and double-seal
- Material:
- Ni-brass, 304SS or 316SS
- Pipe size:
- OD1/4, 3/8, 1/2, 10mm or 12mm
- Pressure:
- 10 to 70 bar/1000psi
Push Lock Elbow
The 90° elbow is a one-piece body selected from food-grade 304 stainless steel and cast by mold. Compared with those split and bonded products, our push lock elbow is thicker and cost-free in material selection.
- Model:
- 704
- Construction:
- push lock ring and double-seal
- Material:
- Ni-brass, 304SS or 316SS
- Pipe size:
- OD1/4, 3/8, 1/2, 10mm or 12mm
- Pressure:
- 10 to 70 bar/1000psi
Push Lock Male Adapter
Model 705 is thread adapter to connect pipes and other thread fittings or machines. One end of this fitting is the push lock connection inlet, and the other end is the external/internal thread.
- Model:
- 705
- Construction:
- push lock and double-seal
- Material:
- Ni-brass, 304SS or 316SS
- Pipe size:
- OD1/4, 3/8, 1/2, 10mm or 12mm
- Pressure:
- 10 to 70 bar/1000psi
- Thread size:
- 1/8, 1/4 or 3/8 male BSPT/NPT
Push Lock Female Adapter
Model 705 is thread adapter to connect pipes and other thread fittings or machines. One end of this fitting is the push lock connection inlet, and the other end is the external/internal thread.
- Model:
- 705
- Construction:
- push lock and double-seal
- Material:
- Ni-brass, 304SS or 316SS
- Pipe size:
- OD1/4, 3/8, 1/2, 10mm or 12mm
- Pressure:
- 10 to 70 bar/1000psi
- Thread size:
- 1/8, 1/4, 3/8 female BSPP/NPS
One-nozzle Off-set End
There is a nozzle threaded hole on the other side, the hole is angled 90° to the pipe connection inlet. It is available in three styles: no-hole, one-nozzle hole and two-nozzle hole.
- Model:
- 706
- Construction:
- push lock ring and double-seal
- Material:
- Ni-brass, 304SS or 316SS
- Pipe size:
- OD1/4, 3/8, 1/2, 10mm or 12mm
- Pressure:
- 10 to 70 bar/1000psi
- Thread size:
- 10/24, 12/24, W3/16 or M5
2-nozzle Off-set End
There is a nozzle threaded hole on the other side, the hole is angled 90° to the pipe connection inlet. It is available in three styles: no-hole, one-nozzle hole and two-nozzle hole.
- Model:
- 706
- Construction:
- push lock ring and double-seal
- Material:
- Ni-brass, 304SS or 316SS
- Pipe size:
- OD1/4, 3/8, 1/2, 10mm or 12mm
- Pressure:
- 10 to 70 bar/1000psi
- Thread size:
- 10/24, 12/24, W3/16 or M5
One-nozzle In-line End
This is an in-line pipe end coupling with one-nozzle thread hole. One end of it is a push lock connection inlet, the other end is a nozzle threaded hole, which is opposite to the its inlet.
- Model:
- 707
- Construction:
- push lock and double-seal
- Material:
- Ni-brass, 304SS or 316SS
- Pipe size:
- OD1/4, 3/8, 1/2, 10mm or 12mm
- Pressure:
- 10 to 70 bar/1000psi
- Thread size:
- 10/24, 12/24, W3/16 or M5
End Plug
This is an end plug, which has a prefabricated slot to secure the eight-jaw locking ring inside the push lock fittings. It is compatible with other 700 series couplings. Insert it into one side of the couplings to quickly block a branch, such as tee.
- Model:
- 708
- Construction:
- One-piece plug
- Material:
- Ni-brass, 304SS, 316SS
- Size:
- OD1/4, 3/8, 1/2, 10mm or 12mm
- Pressure:
- 10 to 70 bar/1000psi
700 Series Fastener

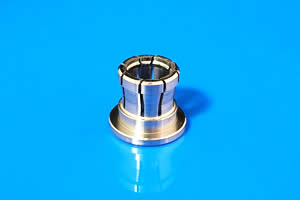

The 700 series lock ring produced from RELAB is an 8-talon fastener. Compared with the ordinary 6-talon lock ring, its unique shape design ensures that the system is more stable during operation.
- Model:
- 709
- Construction:
- 8-talon
- Material:
- Ni-brass, 304SS, 316SS
- Pressure:
- 10 to 70 bar/1000psi
- Size:
- OD1/4, 3/8, 1/2, 10mm or 12mm
