Product Category Overview

A Series: Hollow Cone Nozzles

A

A Hollow Cone Nozzle

Tangential-flow, standard spray angles of 55°~90°, two-piece, removable cap, female thread, without internal insert

Model A is a tangential-flow hollow cone nozzle with a female thread body, which is a combination of two pieces. The range of flow rate is from 0.32LPM to 78LPM at 2 bar. It delivers a standard spray angles of 55°~90° at 2 bar.

A-W

A-W Hollow Cone Nozzle

Tangential-flow, wide spray angles of 100°~140°, two-piece, removable cap, female thread, without internal insert

Model A-W is a tangential-flow hollow cone nozzle with a female thread body, which is a combination of two pieces. The range of flow rate is from 0.32LPM to 32LPM at 2 bar. It delivers a wide spray angles of 95°~144° at 2 bar.

AA

AA Hollow Cone Nozzle

Tangential-flow, standard spray angles of 55°~90°, two-piece, removable cap, male thread, without internal insert

Model AA is a tangential-flow hollow cone nozzle with a male thread body, which is a combination of two pieces. The range of flow rate is from 0.32LPM to 78LPM at 2 bar. It delivers a standard spray angles of 55°~90° at 2 bar.

AA-W

AA-W Hollow Cone Nozzle

Tangential-flow, wide angle of 100°~140°, two-piece, removable cap, male thread, without internal insert

Model AA-W is a tangential-flow hollow cone nozzle with a male thread body, which is a combination of two pieces. The range of flow rate is from 0.32LPM to 32LPM at 2 bar. It delivers a wide spray angles of 95°~144° at 2 bar.

AB

AB Hollow Cone Nozzle

axial-flow, stand spray angle, one-piece body with a slotted vane, female thread

Model AB produces a very fine hollow cone spray pattern, in line with the inlet pipe. The machined inside vane has two precision machined spiral grooves, which produces a wide range of capacities starting from very low values.

AC

AC Hollow Cone Nozzle

axial-flow, standard spray angles of 65°~95°, one-piece short body, with a spiral groove vane, male thread

Model AC is a cutty head nozzle with a parallel pipe thread. The thread size is available from 1/4 up to 1 inch. Easy to install in a small space. An O-ring or gasket is required to seal. Available to use a welding base to connect it with pipe.

AD Hollow Cone Nozzle

axial-flow, spray angles available in 60°, 70° and 80°, two-piece, without any insert, male thread

Model AD is a two-piece design with a removable cap. Water enters from the side, so there is a long tail behind the body. Available connection sizes are from 1/8" to 3/4" with flow rates of 0.93 to 54.3 LPM at 1.0 bar.

AF

AF Hollow Cone Nozzle

Axial-flow, spray angles of 45°-90°, smaller flow rate, 0.2~1.8mm orifice, max. pressure 35 bar, filterable, hydraulic atomization

In all A series hollow cone nozzles, the model AF produces the finest droplet sizes, even at low pressure values. It's an ideal choice for atomizing water, oils, potions and other additives. The flow rates are from 1.3 to 92.0 lph at 4 bar.

B Series: Full Cone Nozzles

BA

BA Cutty Full Cone Nozzle

Cutty hexagon body, Spray angles of 58° ~ 90°, One-piece with a spiral groove vane, parallel pipe thread

Model BA is a short head design with a parallel pipe thread. It is more suitable for tight headroom. Multi-grooved vane design produces a uniform spray effect and standard spray angle.

BB

BB Full Cone Nozzle

One-piece hexagon body, spray angles of 58°~90°, with an X-style vane, available in 1/8" to 3/8" taper pipe thread

Model BB is the most commonly used full cone nozzle. It has a built-in X-style vane, which can better reduce clogging. If you want fast delivery, BB nozzle is the best choice.

BC

BC Full Cone Nozzle

Round body, spray angles of 50°~94°, two-piece, with an X-style vane, available in 3/8" to 1" taper pipe thread

Model BC is a flat square design. It is different appearance from model BB, and both models have the same internal structure and spray features. But its smallest thread size is required at 3/8" .

BE

BE Full Cone Nozzle

Hex body and removable cap, spray angles of 50°~94°, Two-piece body, with an X-style vane, 1/8" to 1/2" taper pipe thread.

Model BE is a combined full cone nozzle, which consists of a removable cap and a connection body. It is available in a variety of flow rate and thread size options. Their advantages are revealed in environments based on small flow and large thread.

BF

BF Full Cone Nozzle

Hex body and removable cap, spray angles of 50°~94°, two-piece body, with an X-style vane, 1/8" to 1/2" parallel pipe thread.

Model BF is a combined full cone nozzle with a female thread, which consists of a removable cap and connection body. It is the same features as model BE, and also available in a variety of flow rate and thread size options.

BK

BK Square Full Cone Nozzle

One-piece round body, with an X-style vane, spray angles of 52°~84°, 1/8" to 2-1/2" taper pipe thread.

The model BK produces a square spray area. Please note that the position of square spray pattern, as it contacts the sprayed surface, will rotate as the pressure increases. This is more pronounced with larger size nozzles and at lower pressures.

BA-W

BA-W Wide Full Cone Nozzle

Cutty hexagon body, 120° wide spray angle, One-piece with a spiral groove vane, parallel pipe thread

Model BA-W is a short head design with a parallel pipe thread. It is more suitable for tight headroom as same as model BA. Multi-grooved vane design produces a uniform spray effect and standard spray angle.

BB-W

BB-W Wide-angle Full Cone Nozzle

One-piece hexagon body, 120° spray angles, with an X-style vane, available in 1/8" to 1/2" taper pipe thread

Model BB-W is a common wide-spray full cone nozzle. It has a built-in X-style vane, which can better reduce clogging. If you want a wide angle and small flow full cone nozzle, the BB-W style is the best choice.

BC-W

BC-W Wide-angle Full Cone Nozzle

One-piece round body, with an X-style vane, 120° wide-angle spray, available in 3/8" to 1-1/2" taper pipe thread

Model BC-W body is a flat square design. It is different appearance from model BC, and both models have the same internal structure and spray features, only the BC-W has much bigger spray angle.

BK-W

BK-W Wide-angle Square Nozzle

One-piece round body, with an X-style vane, 120° spray angles, 1/4" to 1" taper pipe thread.

Model BK-W produces a wide angle square spray pattern. Please note that the position of square spray pattern, as it contacts the sprayed surface, will rotate as the pressure increases. This is more pronounced with larger size nozzles and at lower pressure

BG

BG Narrow-angle Full Cone Nozzle

Two-piece hex body, with a slotted vane, 15°/30° narrow-angle spray, available in 1/8" to 1/2" male taper pipe thread with 2.8~36LPM at 3 bar

Model BG is a combined full cone nozzle, which delivers a narrow angle full cone spray pattern. The spray angle are 15° or 30° at 3 bar pressure. It is more convenient to choose a smaller flow rate with a larger thread size.

BH

BH Narrow-angle Full Cone Nozzle

Two-piece hex body, with a slotted vane, 15°/30° narrow-angle spray, available in 1/8" to 1/2" female parallel pipe thread with 2.8~36LPM at 3 bar.

Model BH is a combined full cone nozzle, they are the same features as the model BG except the thread type. The spray angles are optional in 15° or 30° at 3 bar pressure. It is more convenient to choose a smaller flow rate with a larger thread size.

BL

BL Max. Passage Full Cone Nozzle

One-piece round body, with S-style vane, spray angles available in 60°, 90° and 120°, 3/8" to 4" male thread

Model BL has an ultimate clog-resistant design with largest free passage available in full cone nozzles. Unique S-style vane design enables the nozzle to successfully handle dirty and lumpy liquids, even large particles without clogging.

C Series: Flat Fan Nozzles

CA

CA Cutty Flat Fan Nozzle

One-piece cutty hexagon body, Spray angles of 15°~110°, 2.4~53LPM at 3 bar, 1/8" to 3/8" male BSPP/NPS parallel pipe thread

Model CA is a short head design with a parallel pipe thread. It is more suitable for tight headroom. Their short body design makes it possible to use nozzle spray pipes in such machines or systems where the available space is very limited.

CB

CB Small-flow Flat Nozzle

One-piece hex body, Spray angles of 15~110°, flow rates of 0.2~5.9lpm at 3 bar, 1/8" to 1/4" male BSPT/NPT taper pipe threads

Model CB is a small flow flat fan nozzle with a T-shaped design to be more convenient and accurate arrangement and better spray effect. The coverage area overlaps by 30% to obtain complementary and more uniform distribution.

CC

CC Medium-flow Flat Nozzle

One-piece hex body, Spray angles of 15~110°, flow rates of 9.1~46 lpm at 3 bar, 1/4" to 3/8" male BSPT/NPT taper pipe threads

The CC series nozzle is a medium flow nozzle, which has a V-style slot to allow for large flow at a small angle. The multi-purpose CC series nozzles can be used for the cooling of rolls, steel sheets and billets etc.

CE

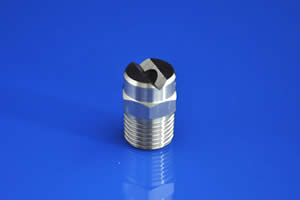

CE Oval-slot Flat Nozzle

One-piece hex body, spray angles of 15°~80°, flow rates of 24~158 lpm at 3 bar, 1/8" to 1" female BSPT/NPT taper pipe threads

The CE series nozzle is a medium flow nozzle, which has an oval slot to allow for large flow at a small angle. The multi-purpose CE series nozzles can be used for the cooling of rolls, steel sheets and billets etc.

CK

CK Wide-angle Flat Fan Nozzle

One-piece hex body, spray angles of 83~143°, flow rates of 0.14~251 lpm at 1.5 bar, 1/8" to 1" male BSPT/NPT taper pipe threads

Model CK is deflector-type design producing spray at 75° spray angle from inlet orifice. It features a wide angle coverage and medium impact value at low pressures. The tapered inlet and circular orifice are designed for better resistance to clogging.

CP

CP Narrow-angle Flat Fan Nozzle

One-piece hex body, spray angles of 15~50°, flow rates of 0.14~251 lpm at 1.5 bar, 1/8" to 1" male BSPT/NPT taper pipe threads

Model CP Nozzles feature a very powerful, narrow, flat spray pattern with a deflexion spray angle and sharply defined edges. The uniform, high impact spray pattern is produced from the precision machined deflector surface.

D Series: Solid Stream Nozzles

DA

DA Standard Solid Stream Nozzle

One-piece hex standard body, without any inserts, solid stream, 0° spray angle, brass/stainless steel, 1/8", 1/4", 3/8" or 1/2" male either BSPT or NPT threads

DA solid stream nozzle is complete brass or stainless nozzle without any inserts. The model produces a precise, concentrated and high-velocity stream which is longer distances than flat fan nozzles to handle tough cleaning applications.

DB

DB Ruby-orifice Solid Stream Nozzle

One-piece hex longer body, with a ruby insert, solid stream, 0° spray angle, brass material, 1/8" male BSPT/NPT threads

DB solid stream nozzles are made from brass body with a ruby insert. The models have the benefit of being designed from a special ruby orifice. The ruby inserts are available in a very wide ranged of spray orifice sizes.

DC

DC Cutty Solid Stream Nozzle

One-piece hex short body, with a ruby insert, solid stream, 0° spray angle, brass/316SS, 1/4" or 9/16" parallel pipe threads

DC solid stream nozzle is a short body nozzle with a ruby orifice. Built with ruby insert material for a longer wear life than stainless or even ceramic. RELAB solid stream nozzles produce a highly efficient spray.

E Series: Uni Spray Nozzles

EA/EB-Flat Fan

Flat Fan Uni Spray Nozzle

Three-piece hex body, spray angles of 15°~140° , flow rates of 0.16~39 lpm at 3 bar, 1/8" to 1/2" BSPT/NPT taper male threads

For this flanged spray tip, a wider range of flow rates is selected from minimum to medium. The appearance styles are also available in standard, wide or narrow angle to meet the needs from different places.

EA/EB-Full Cone

Full Cone Uni Spray Nozzle

Three-piece hex body, spray angles of 50°~120° , flow rates of 0.16~19 lpm at 3 bar, 1/8" to 1/2" BSPT/NPT taper male threads

For this flanged spray tip, a wider range of flow rates is selected from minimum to medium. Compared to ordinary one-piece nozzles, this detachable spray tip and body is not limited by the flow rate and body size, and the choice is more extensive.

EC

Dovetailed Tip and Welding Seat

Three-piece combined nozzle, spray angles of 20°~120°, flow rates of 0.5~194 lpm at 3 bar, 3/8" to 1-1/4" female thread retainer cap

The flat fan tips are usually assembled onto a manifold through a welding nipple or a clamp and secured tight with a locknut. Therefore they can be easily replaced and their jet easily oriented in the desired direction.

ED-SS

SS Quick Jet Nozzles

Three-piece, spray angles of 15°~120° , flow rates of 0.4~37 lpm at 3 bar, 1/8" to 1/2" BSPT/NPT taper male threads

The quick connection spray tip screwed into the connection body is automatically locked in the correct position, completely avoiding time-consuming manual adjustment and correction operations, can be installed manually without the help of any tools.

20088 Series: Clamp Adjustable-ball Nozzles

Plastic Clamp Adjustable-ball Nozzles

SS Clamp Adjustable-ball Nozzles

SS Spray Tip and Plastic Seat

Plastic Threaded Adjustable-ball Nozzles

SS Threaded Adjustable-ball Nozzles

SS Spray Tip and Plastic Seat

Plastic Threaded Eyelet Nozzle

SS Threaded Eyelet Nozzle

F Series: Mist Nozzles

FA

FA Mist Tip

One-piece body with an SS insert, slotted vane, 0.2~1.0mm SS orifice, without anti-drip valve, 3~15 bar, thread size available in 10/24, 12/24, W3/16 or M5.

Model FA is a low pressure mist tip, the body is made of brass or stainless steel. This mist tip is available in combination with various spray clusters. This mist tip is widely used in mosquito control and outdoor humidification.

FA

FA Barb Mist Tip

One-piece body with an SS insert, slotted vane, 0.2~1.0mm SS orifice, without anti-drip valve, 3~15 bar, barb size available in 6mm or 1/4 inch.

Model FA is a low pressure mist tip, the body is made of brass or stainless steel. The connection type is available in thread or barb style. This barb stem can be inserted into a 6mm or 1/4" plastic tubing.

FB

FB Push-in Mist Tip

Two-piece body with an SS insert, slotted vane, 0.2~1.0mm SS/ceramic orifice, with an anti-drip valve, 7~15 bar, stem size is available in 6mm or 1/4 inch.

Model FB is a low pressure mist tip, the body is made of brass or stainless steel. The connection body is available in push-in stem style. It is very easy to push into a quick couplings. This nozzle can be fitted with a filter plug at the inlet.

FC

FC Plastic Micro Mist Nozzle

One-piece body with a plastic vane, 0.3/0.4mm orifice, without anti-drip valve, 3~15 bar, thread size available in 1/8" male either BSPT or NPT.

Model FC is hydraulic plastic mist nozzle, the body is made of PP plastic in black color with a screen mesh. This plastic mist nozzle is widely used in mosquito control, yard, stock farm cooling and humidification.

FC

FC Anti-drip Plastic Micro Mist Nozzle

One-piece body with a plastic vane, 0.3/0.4mm orifice, with an anti-drip valve and screen mesh, 3~15 bar, thread size available in 1/8" male either BSPT or NPT.

Model FC is hydraulic plastic mist nozzle, there is an anti-drip valve inside of it, so this type needs a higher working pressure of more than 3 bar. This plastic mist nozzle is widely used in mosquito control, yard, stock farm cooling and humidification.

FD-SS

FD Stainless Steel Fine Mist Nozzle

two-piece body, removable SS spray disc, 0.2~0.8mm orifice, internal anti-drip valve, without filter, 10/24, 12/24, 3/16 or M5 thread

Model FD is a common high pressure mist nozzle. Its open pressure is 20 bar due to an internal anti-drip valve. This model is without any filter or strainer/screen, so the mini. orifice diameter is 0.2mm only.

FE-SS

FE Filterable Fine Mist Nozzle

three-piece body, removable SS spray disc, 0.1~0.8mm orifice, internal anti-drip valve, with an internal filter, 10/24, 12/24, 3/16 or M5 thread

Model FE is a lengthened high pressure mist nozzle. Besides of the anti-drip valve, it still has a filter base. Its mini. orifice diameter is 0.1mm. The 316 stainless steel is available on request.

FF-SS

FF Filterable Fine Mist Nozzle

Two-piece body, removable SS spray disc, 0.1~0.5mm orifice, internal anti-drip valve, with an external filter plug, 1/8" BSPT or NPT male thread

Model FF is made of 304 stainless steel, which consists of the body, cap, spray disc, anti-drip valve and filter plug. It has a hexagon body with 1/8" male taper pipe threads. All parts are removable, cleanable and replacement.

FJ-SS

FJ SS Impact Pin Mist Nozzle

One-piece hexagon body with an impingement pin, 0.2~1.0mm orifice, spray angles available in 80°~120°, 1/8 or 1/4 BSPT/NPT male thread

Model FJ produces extremely fine fog masses, which is especially suitable for spray humidification and making artificial landscapes outdoor. The full stainless steel body is available in various orifice diameter.

FD-CE

FD Cleanable Ceramic Mist Nozzle

Two-piece body, removable SS spray disc, 0.2~0.8mm orifice, internal anti-drip valve, without filter, 10/24, 12/24, W3/16 or M5 thread

Model FD is a common high pressure mist nozzle. Its open pressure is 20 bar due to an internal anti-drip valve. Model FD-CE is a ceramic orifice nozzle without the filter. The construction is the same as FD-SS model, except for the orifice.

FE-CE

FE Filterable Ceramic Mist Nozzle

three-piece body, removable ceramic spray disc, 0.1~0.8mm orifice, internal anti-drip valve, with an internal filter, 10/24, 12/24, 3/16 or M5 thread

Model FE is a lengthened high pressure mist nozzle. Besides of the anti-drip valve, it still has a filter base. Its mini. orifice diameter is 0.1mm. The 316 stainless steel is available on request.

FF-CE

FF Filterable Ceramic Mist Nozzle

Two-piece hexagon body, removable ceramic spray disc, 0.1~0.5mm orifices, with an anti-drip valve and external filter, 20~70 bar, W3/16, 10/24, 12/24 or M5 thread

FG-CE

FG 316SS Ceramic Mist Nozzle

Two-piece round body, 0.1~0.25mm orifices, with an anti-drip valve and external filter, spray angles of 30°~85°, 1/8" male BSPP/NPS.

Compared to the FD, FE and FF series, the FG model has a larger ceramic spray disc. ceramic material has a higher finish than stainless steel, and the liquid has a stronger pass rate at the same pressure.

FG-CE

FH Brass Ceramic Mist Nozzle

Two-piece round body, 0.1~0.25mm orifices, with an anti-drip valve and external filter, spray angles of 30°~85°, 1/8" male BSPP/NPS.

FE-RB

FE Filterable Ruby Mist Nozzle

three-piece body, removable ruby spray disc, 0.1~0.3mm orifice, internal anti-drip valve, with an internal filter, 10/24, 12/24, 3/16 or M5 thread

Model FE is a lengthened high pressure mist nozzle. Besides of the anti-drip valve, it still has a filter base. The ruby orifice is recommended from 0.1mm to 0.3mm. The 316 stainless steel is available on request.

FF-RB

FF Filterable Ruby Mist Nozzle

Two-piece hexagon body, removable ceramic spray disc, 0.1~0.3mm orifices, with an anti-drip valve and external filter, 20~70 bar, 1/8" male BSPT/NPT thread

FJ-RB

FJ Ruby Impact Pin Mist Nozzle

one-piece with an impingement pin, ruby spray disc, 0.15mm orifice, 1/8 or 1/4 BSPT/NPT male thread

Model FJ produces extremely fine fog masses, which is especially suitable for spray humidification and making artificial landscapes outdoor. The 0.15mm orifice is for ruby orifice, and it has a long lifetime due to the ruby's high abrasion resistance.

G Series: Oil Burner Nozzles

GA

GA Siphon Oil Buner Nozzle

Two-piece hexagon body, removable SS spray disc, slotted vane, 0.2~1.0mm orifice, spray angles of 30°~80°, 9⁄16”-24 UNEF thread

Model GA is a pneumatic atomizing nozzle. It can be used to atomize water, oil and other solutions with the aid of air. So it requires a special adapter to connect the liquid and compressed air. The liquid is automatically inhaled based on the siphon.

GD

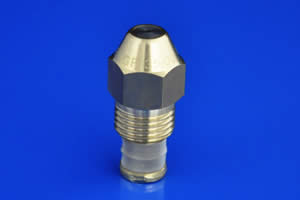

GD Brass Snowmaking Nozzle

One-piece hexagon body, removable filter base, 0.1~0.8mm orifice, without the anti-drip valve, 7~35 bar, spray angles of 30°~90°, 1/4" or 9/16-24 male thread

Model G series is a finer hollow cone nozzle, while GD is a hydraulic spray type, It is available in a variety of orifice diameters. GD nozzle is an ideal part for the oil burner, fog cannon and snowmaking.

GF

GF Oil Burner Nozzle

One-piece hexagon body, removable filter base, 0.1~0.8mm orifice, without the anti-drip valve, 7~45 bar, spray angles of 30°~90°, 1/4" or 9/16-24 male thread

Model G series is a finer mist nozzle, while GF is a pressure atomization type, It is available in a variety of orifice diameters. GF nozzle is an ideal part for the oil burner, fog cannon and air conditioning system.

H Series: Liquid Mixing Jet Nozzles

HA

Mini Plastic Tank Nozzle

One-piece body, "in-tank" applications, venturi design, GFRP/PVDF plastic, 0.7~4 bar, 5.0 mm Max. free passage, available in 1/4" either BSPT or NPT

The nozzles can pull in 2 gallons of surrounding solution for every 1 gallon pumped from nozzle input, so its circulation ratio of supply to discharge is 1:3, which enable smaller pumps to circulate large volumes of tank solution.

HB

Plastic Mixing Jet Nozzle

Two-piece, "in-tank" applications, venturi design, GFRP/PVDF plastic, 0.7~4 bar, 5~10mm Max. free passage, available in 1/4", 3/8", 1/2", 3/4" either BSPT or NPT

Mixing Jet Nozzles use a unique venturi design which enable smaller pumps to circulate large volumes of tank solution. General uses include lifting, pumping, mixing, and agitating of liquids as well as handling granular solids and slurries.

HC

Liquid Mixing Eductor

Two-piece body, "in-tank" applications, venturi design, GFRP/PVDF plastic, 0.7~4 bar, 10mm Max. free passage, available in 3/4" either BSPT or NPT

The nozzles can pull in 4 gallons of surrounding solution for every 1 gallon pumped from nozzle input, so its circulation ratio of supply to discharge is 1:5, which enable smaller pumps to circulate large volumes of tank solution.

HB-TL

Threaded Adjustable-ball and Eductor

Multi-piece construction, GFRP plastic, 14mm drilling size, adjustment at 45° direction, threads of the seat and eductor are available in 1/4", 3/8" and 1/2"

Threaded adjustable-ball seat simply screws into a threaded pipe and is available with a variety of spray tips. The swivel adjustable-ball allows 45°direction control for precise spray coverage. For sizes 1/4", 3/8" and 1/2" only.

HB-BL

Clip Adjustable-ball and Eductor

Multi-piece construction, 304SS clip, 14mm drilling size, adjustment at 45° direction, available in 1/4", 3/8" and 1/2" eductor threads, 1", 1-1/4", 1-1/2" or 2" pipe size

Clip adjustable-ball seat simply clips on a pre-drilled pipe and is available with a variety of spray tips. The swivel adjustable-ball allows 45°direction control for precise spray coverage. For sizes 1/4", 3/8" and 1/2" only.

HD-SS304

304SS Mixing Eductor Nozzle

One-piece body, "in-tank" applications, venturi design, 304/316 stainless steel, 0.7~4 bar, available in 1/4", 3/8", 1/2", 3/4", 1-1/2" and 2" either BSPT or NPT thread

Mixing Eductor Nozzles vigorously and efficiently circulate the liquid contents of tanks without powered impellers or other insertion-type rotating mechanical devices.

HD-SS316

316SS Mixing Eductor Nozzle

One-piece body, "in-tank" applications, venturi design, 304/316 stainless steel, 5~14mm Max. free passage, available in 1/4", 3/8", 1/2", 3/4", 1-1/2" and 2" either BSPT or NPT thread

Mixing Eductor Nozzles can often replace motor-driven mechanical agitators and avoid the maintenance associated with mechanical devices.

I Series: Blowing Jet Nozzles

J Series: Air Atomizing Nozzles

Standard Flat Spray

JA Siphon Flat Air Atomizing Nozzle

Multi-piece body, flat fan spray, siphon or gravity liquid supply, two fluids mixed by internal mixing, thread sizes available in 1/8", 1/4" or 3/8" female BSPP or NPS

Flat fan air atomizing nozzles are most used for coating and cooling applications when-ever a wide linear pattern is required. They are commonly used where products to be coated are moving on a conveyor.

Standard Flat Spray

JB Siphon Flat Air Atomizing Nozzle

Multi-piece body, flat fan spray, siphon or gravity liquid supply, two fluids mixed by internal mixing, thread sizes available in 1/8", 1/4" or 3/8" female BSPP or NPS

Standard Flat Spray

JC Siphon Flat Air Atomizing Nozzle

Multi-piece body, flat fan spray, siphon or gravity liquid supply, two fluids mixed by internal mixing, thread sizes available in 1/8", 1/4" or 3/8" female BSPP or NPS

Wider Flat Spray

JA Pressure Flat Air Atomizing Nozzle

Multi-piece body, flat fan spray, pressure liquid supply, two fluids mixed by internal mixing, thread sizes available in 1/8", 1/4" or 3/8" female BSPP or NPS

The pressure flat fan air cap is more suitable for assembling spray headers and using in large areas. Compared to the siphon fan air cap, the pressure fan air cap produces a larger spray angle, denser spray particles, and a longer delivery distance.

Wider Flat Spray

JB Pressure Flat Air Atomizing Nozzle

Multi-piece body, flat fan spray, pressure liquid supply, two fluids mixed by internal mixing, thread sizes available in 1/8", 1/4" or 3/8" female BSPP or NPS

Wider Flat Spray

JC Pressure Flat Air Atomizing Nozzle

Multi-piece body, flat fan spray, pressure liquid supply, two fluids mixed by internal mixing, thread sizes available in 1/8", 1/4" or 3/8" female BSPP or NPS

Widest Flat Spray

JA External Mixing Air Atomizing Nozzle

Multi-piece body, flat fan spray, pressure liquid supply, two fluids mixed by external mixing, thread sizes available in 1/8", 1/4" or 3/8" female BSPP or NPS

This is an external mixing flat spray pattern. The liquids are supplied by pressure and suitable for spraying viscous liquids. Compared with other flat fan air caps, there is a bigger spray angle, a larger flow output and a faster liquid transfer speed.

Widest Flat Spray

JB External Mixing Air Atomizing Nozzle

Multi-piece body, flat fan spray, pressure liquid supply, two fluids mixed by external mixing, thread sizes available in 1/8", 1/4" or 3/8" female BSPP or NPS

Widest Flat Spray

JC External Mixing Air Atomizing Nozzle

Multi-piece body, flat fan spray, pressure liquid supply, two fluids mixed by external mixing, thread sizes available in 1/8", 1/4" or 3/8" female BSPP or NPS

Narrow Round

JA Siphon Round Air Atomizing Nozzle

Multi-piece body, full cone spray, siphon or gravity liquid supply, two fluids mixed by internal mixing, thread sizes available in 1/8", 1/4" or 3/8" female BSPP or NPS

Full cone air atomizing nozzles are desirable for applications requiring a relatively narrow, long-reaching, circular pattern and are especially suited to gas cooling, gas conditioning and humidifying.

Narrow Round

JB Siphon Round Air Atomizing Nozzle

Multi-piece body, full cone spray, siphon or gravity liquid supply, two fluids mixed by internal mixing, thread sizes available in 1/8", 1/4" or 3/8" female BSPP or NPS

Narrow Round

JC Siphon Round Air Atomizing Nozzle

Multi-piece body, full cone spray, siphon or gravity liquid supply, two fluids mixed by internal mixing, thread sizes available in 1/8", 1/4" or 3/8" female BSPP or NPS

Round Spray

JA Pressure Round Air Atomizing Nozzle

Multi-piece body, round spray, liquid supplied by pressure, two fluids mixed by internal mixing, thread sizes available in 1/8", 1/4" or 3/8" female BSPP or NPS

The round air cap produces a narrow angle round spray pattern. The liquid is pressure fed and internally mixed. Droplet sizes and flow rates are larger than the other two liquid supply modes, depending on the liquid to air consumption ratio.

Round Spray

JB Pressure Round Air Atomizing Nozzle

Multi-piece body, round spray, liquid supplied by pressure, two fluids mixed by internal mixing, thread sizes available in 1/8", 1/4" or 3/8" female BSPP or NPS

Round Spray

JC Pressure Round Air Atomizing Nozzle

Multi-piece body, round spray, liquid supplied by pressure, two fluids mixed by internal mixing, thread sizes available in 1/8", 1/4" or 3/8" female BSPP or NPS

Wide-angle Round

JA Wide Round Air Atomizing Nozzle

Multi-piece body, wide-angle round spray, liquid supplied by pressure, two fluids mixed by internal mixing, thread sizes available in 1/8", 1/4" or 3/8" female BSPP or NPS

The wide-angle round air cap produces a spray cluster combined from 6 round holes. The liquids are supplied by pressure. Compared with the round spray pattern, there is a bigger spray angle, a larger flow output and a faster liquid transfer speed.
